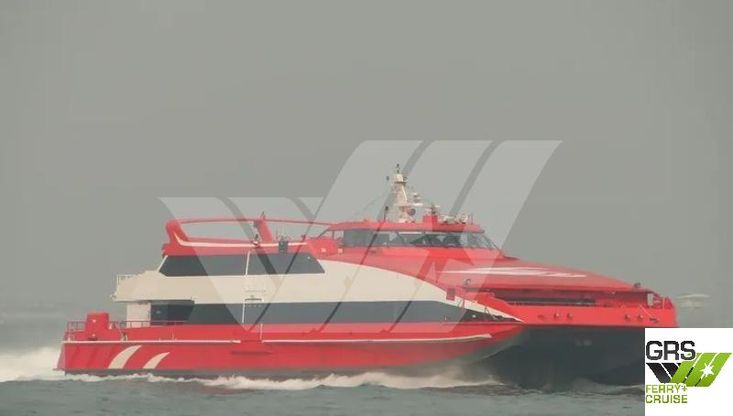

Description

PRINCIPAL DIMENSIONS
Length overall 47.5 metres
Length (waterline) 44.0 metres
Beam (moulded) 11.8 metres
Hull depth (moulded) 3.8 metres
Hull draft (maximum) 1.4 metres

PAYLOAD AND CAPACITIES

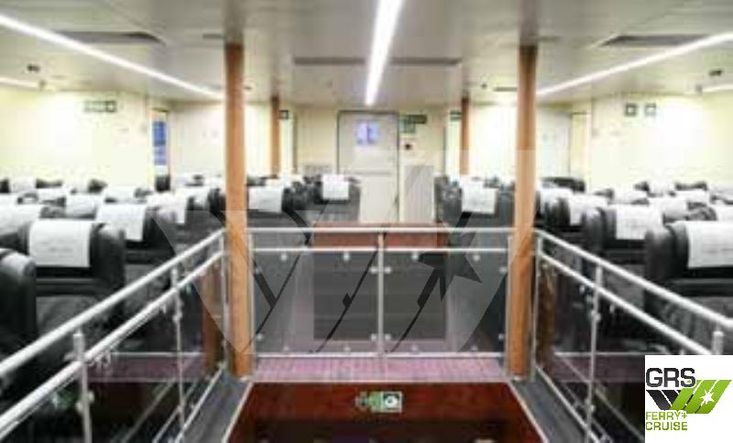

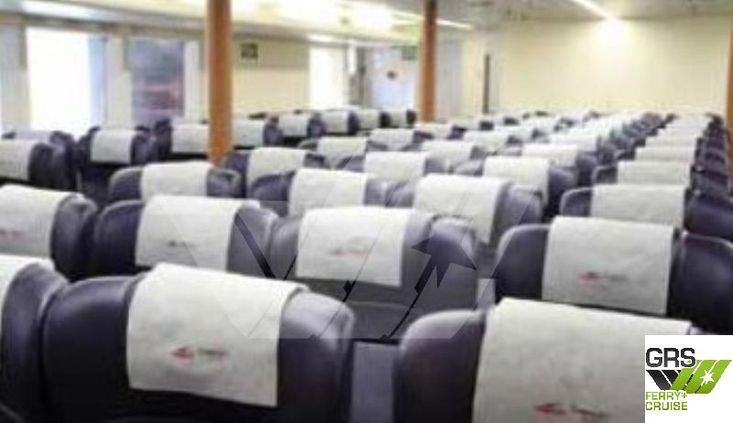

Passengers 418
Crew 8
Maximum deadweight 55.7 tonnes
Fuel 20,000 litres

PROPULSION
Main engines 4 x MTU 16V 4000 M70
4 x 2,320 kW @ 2,000 rpm
Gearboxes 4 x Reintjes VLJ 930
Waterjets 4 x Kamewa 63 SII

PERFORMANCE
Service speed (95% MCR) 44.1 knots
Fuel consumption (approx.) @ 100% MCR 1.87 tonnes/hour
comfort enhancement
Active T-Foil and Interceptor Ride Control System (optional fit)

CLASSIFICATION
Det Norske Veritas
1A1 HSLC Passenger R2 EO
Hong Kong (SAR)
LOA 47.5 m
Beam 11.75 m
Draft 1.62 m

Total passenger capacity 430

1 Deck

Built in year 2008
Class : DNV
Flag : Hong Kong
Gross Tonnage of 695 and Nett Tonnage of 230

Speed : 42.3 knots
Engines : 4 x M.T.U. / MTU Friedrichshafen Gmbh - GEU 16V4000M70, 9,280 kw, 2,000 rpm, Propellers 1 Water Jet (Port Side Inner) + 1 Water Jet (Port Side Outer) + 1 Water Jet (Starboard Inner) + 1 Water Jet (Starboard Outer)
Auxiliaries Engines : 2 Cummins 188 kw

Specifications

Engine(s)

4 x 9,280 kw, 2,000 rpm, M.T.U. / MTU Friedrichshafen Gmbh - GEU 16V4000M70,
Propellers: 1 Water Jet (Port Side Inner) + 1 Water Jet (Port Side Outer) + 1 Water Jet (Starboard Inner) + 1 Water Jet (Starboard Outer)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified
