Description

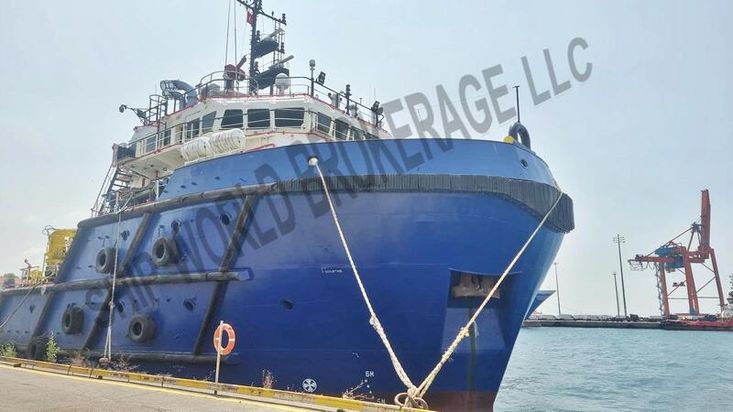

63M - 6500 BHP - AHTSV

Deadweight: 1575t
Registered tonnage: GRT 1943 t approx. / NRT 650 t approx.

Depth molded: 6.8 m

Class Symbols: I Hull Mach
Service Notations: Tug Fire-fighting -Supply vessel -heavycargo (Main Deck 50
kN/m2)
Navigation Not.: Unrestricted navigation
Add. Class Not.: AUT-UMS, MON-SHAFT, SDS
Machinery: MACH
Equipment: 2 Main anchors, chain diameter 38 mm, steel quality Q2
(High tensile strength steel)

Specifications

Accommodation

Accommodation

Cabins / beds
Crew / passengers
Mess / day room

4 x 1 man plus 12 x 2 men cabins , 2 X 4 men cabins

36 men
2

Construction

Capacities 100%

Fuel oil 804 m3
Fresh water 483 m3
Liquid mud 290 m3 + 120 m3
Brine Combining mud tanks
Drill-water / ballast 538 m3
Dry bulk 206 m3 (4 tanks)
Foam tank 20 m3
Dispersal tank 20 m3

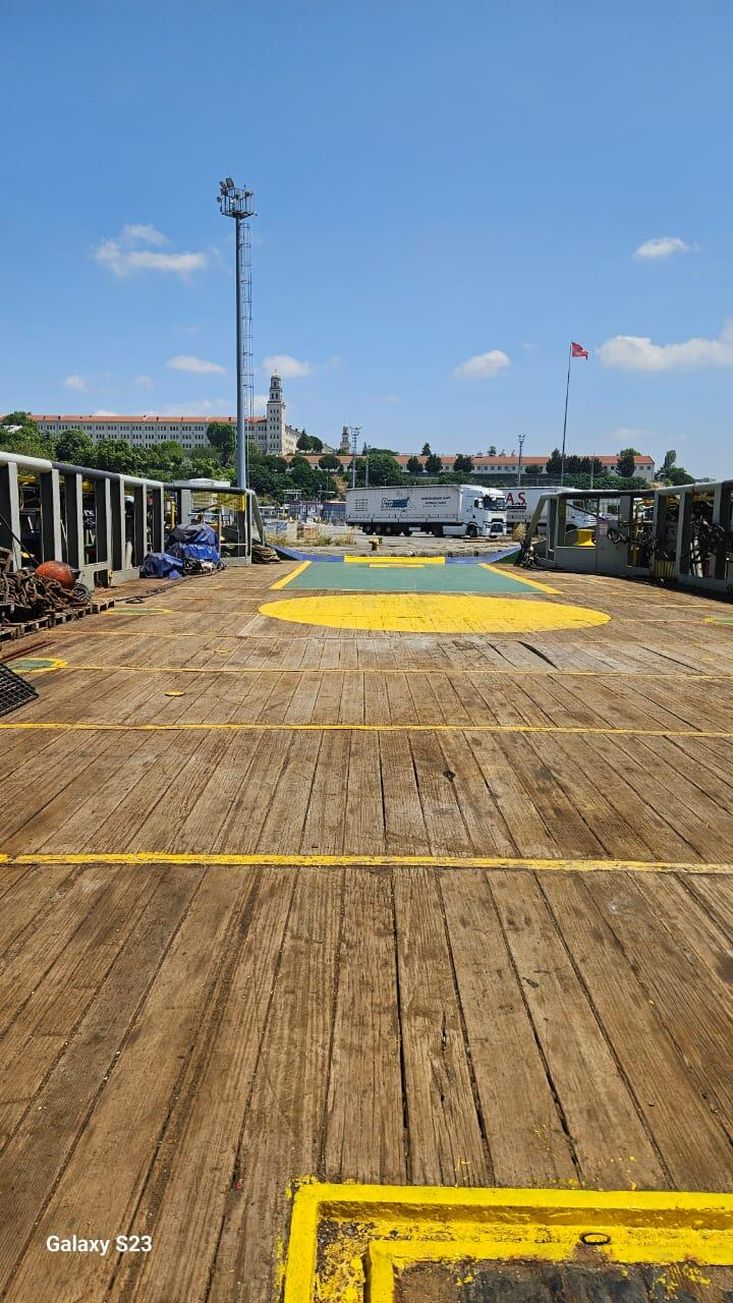

Deck area 420 m2 (31 m x 12.8 m)
Deck cargo 600 tonnes
Deck strength 5 tonnes
Cool store / freezer 1 x 11 m3 / 1 x 13 m3
Dry provision 1

Towing / Anchor handling / Mooring

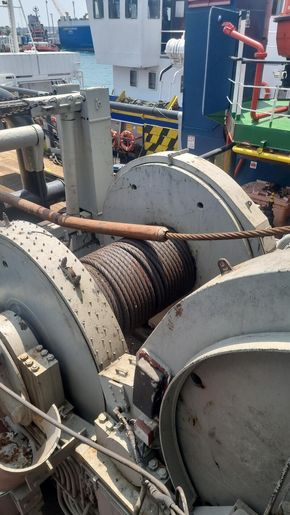

Towing / anchor handling winch 2 x 150 tonnes pull / 250 tonnes break
Brattvaag
Towing / anchor handling winch dim 800 mm diameter x 2090 diameter x
1600 mm

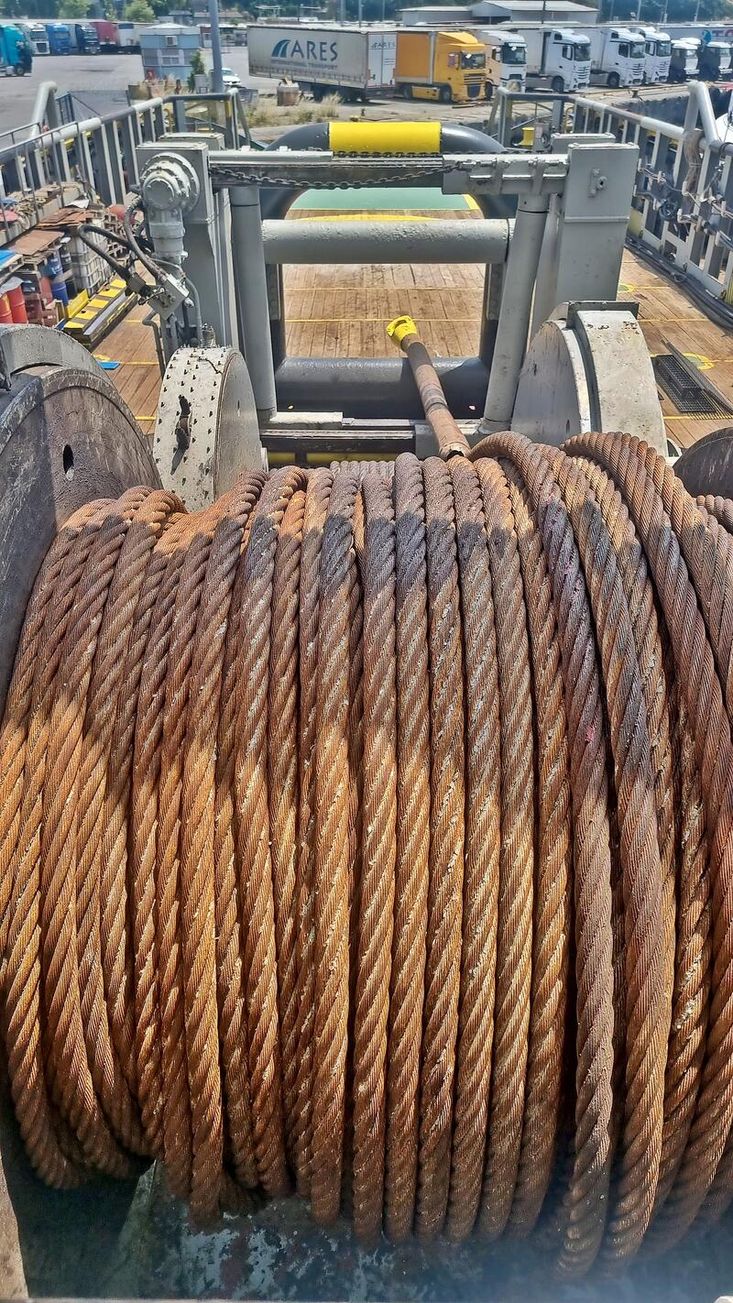

Towing / anchor handling winch cap 1000 m x 62 mm wire each

Engine(s)

Machinery

Main Engines: Rolls Royce (Bergen) C25:33-L8P
Main engines (2 sets) 2 x 2400 kW 1000 rpm @ BHP 3250
Propulsion aft 2 x AGHC-66XF5/4 E3000N
Rudders 2 x ABG Spade Type
Total BHP / kW 6500 BHP / 4800 kW
Bow thruster 1 x 500 kW / 680 BHP
Diesel generators 3 x 425 kW 440V 60Hz 3Phase
Emergency generator 1 x 65 kW

Performance
Bollard pull max and continuous 82 tonnes
Max speed 13.5 knots
Service speed 10.5 knots
Economical speed 10.5 knots
